Wózek skrętny o niskim prześwicie typu VLHP
Udźwigi od 250,0kg do 6,0t
Wózki ręczne przepychane.
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Minimalna szerokość półki | Maksymalna szerokość półki | Maksymalna grubość półki | Minimalny promień | Masa |
| kg | mm | mm | mm | mm | kg | ||
| VLHP 0,25 | - | 250,0 | 67,00 | 117,00 | 16,00 | 251,00 | 20,00 |
| VLHP 0,5 | - | 500,0 | 67,00 | 117,00 | 16,00 | 251,00 | 20,00 |
| VLHP 1,0 | - | 1 000,0 | 76,00 | 117,00 | 16,00 | 251,00 | 27,00 |
| VLHP 1,5 | - | 1 500,0 | 86,00 | 140,00 | 16,00 | 495,00 | 38,00 |
| VLHP 2,0 | - | 2 000,0 | 86,00 | 140,00 | 16,00 | 495,00 | 38,00 |
| VLHP 3,0 | - | 3 000,0 | 102,00 | 178,00 | 16,00 | 391,00 | 71,00 |
| VLHP 4,0 | - | 4 000,0 | 102,00 | 178,00 | 16,00 | 391,00 | 71,00 |
| VLHP 5,0 | - | 5 000,0 | 117,00 | 203,00 | 22,00 | 860,00 | 125,00 |
| VLHP 6,0 | - | 6 000,0 | 117,00 | 203,00 | 22,00 | 860,00 | 125,00 |

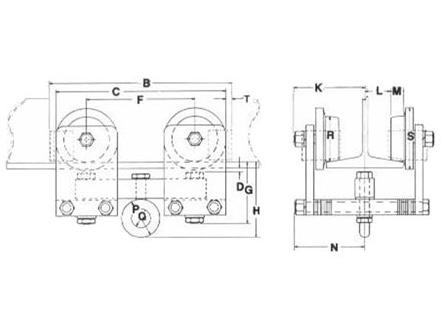

| Wymiary | B | C | D | F | G | H | K | L | M | N | P | Q | R | S | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| VLHP 0.25 | 298,0 | 279,0 | 8,0 | 178,0 | 103,0 | 124,0 | 114,0 | 41,0 | 22,0 | 110,0 | 64,0 | 32,0 | 73,0 | 92,0 | 10,0 |
| VLHP 0.5 | 298,0 | 279,0 | 8,0 | 178,0 | 103,0 | 124,0 | 114,0 | 41,0 | 22,0 | 110,0 | 64,0 | 32,0 | 73,0 | 92,0 | 10,0 |
| VLHP 1.0 | 330,0 | 305,0 | 8,0 | 178,0 | 111,0 | 130,0 | 121,0 | 32,0 | 28,0 | 111,0 | 64,0 | 32,0 | 95,0 | 127,0 | 25,0 |
| VLHP 1.5 | 413,0 | 362,0 | 6,0 | 210,0 | 114,0 | 140,0 | 127,0 | 44,0 | 29,0 | 127,0 | 76,0 | 38,0 | 114,0 | 152,0 | 25,0 |
| VLHP 2.0 | 413,0 | 362,0 | 6,0 | 210,0 | 114,0 | 140,0 | 127,0 | 44,0 | 29,0 | 127,0 | 76,0 | 38,0 | 114,0 | 152,0 | 25,0 |
| VLHP 3.0 | 476,0 | 445,0 | 6,0 | 241,0 | 165,0 | 204,0 | 152,0 | 52,0 | 34,0 | 152,0 | 95,0 | 51,0 | 162,0 | 203,0 | 29,0 |
| VLHP 4.0 | 476,0 | 445,0 | 6,0 | 241,0 | 165,0 | 204,0 | 152,0 | 52,0 | 34,0 | 152,0 | 95,0 | 51,0 | 162,0 | 203,0 | 29,0 |
| VLHP 5.0 | 565,0 | 527,0 | 5,0 | 298,0 | 194,0 | 264,0 | 194,0 | 68,0 | 48,0 | 191,0 | 140,0 | 76,0 | 183,0 | 229,0 | 64,0 |
| VLHP 6.0 | 565,0 | 527,0 | 5,0 | 298,0 | 194,0 | 264,0 | 194,0 | 68,0 | 48,0 | 191,0 | 140,0 | 76,0 | 183,0 | 229,0 | 64,0 |

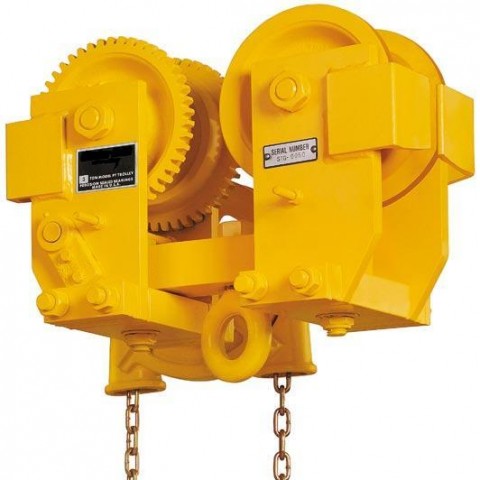

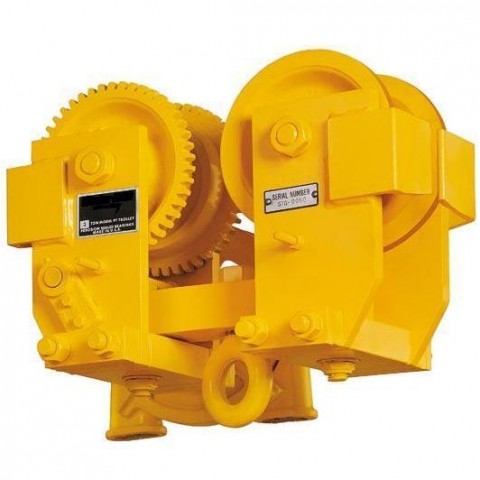

Wózek skrętny o małym prześwicie typu VLHG
Udźwigi od 250,0kg do 6,0t
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Minimalna szerokość półki | Maksymalna szerokość półki | Maksymalna grubość półki | Minimalny promień | Masa |
| kg | mm | mm | mm | mm | kg | ||
| VLHG 0,25 | - | 250,0 | 67,00 | 117,00 | 16,00 | 251,00 | 29,00 |
| VLHG 0,5 | - | 500,0 | 67,00 | 117,00 | 16,00 | 251,00 | 29,00 |
| VLHG 1,0 | - | 1 000,0 | 76,00 | 117,00 | 16,00 | 251,00 | 35,00 |
| VLHG 1,5 | - | 1 500,0 | 86,00 | 140,00 | 16,00 | 495,00 | 48,00 |
| VLHG 2,0 | - | 2 000,0 | 86,00 | 140,00 | 16,00 | 495,00 | 48,00 |
| VLHG 3,0 | - | 3 000,0 | 102,00 | 178,00 | 16,00 | 391,00 | 85,00 |
| VLHG 4,0 | - | 4 000,0 | 102,00 | 178,00 | 16,00 | 391,00 | 85,00 |
| VLHG 5,0 | - | 5 000,0 | 117,00 | 203,00 | 22,00 | 860,00 | 140,00 |
| VLHG 6,0 | - | 6 000,0 | 117,00 | 203,00 | 22,00 | 860,00 | 140,00 |
| Wymiary | A | B | C | D | E | F | G | H | I | J | K | L | M | N | 0 | P | Q | R | S | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| VLHG0.25 | 391,0 | 324,0 | 305,0 | 6,0 | 130,0 | 178,0 | 103,0 | 124,0 | 113,0 | 232,0 | 114,0 | 40,0 | 22,0 | 110,0 | 200,0 | 64,0 | 32,0 | 73,0 | 102,0 | 10,0 |
| VLHG 0.5 | 391,0 | 324,0 | 305,0 | 6,0 | 130,0 | 178,0 | 103,0 | 124,0 | 113,0 | 232,0 | 114,0 | 40,0 | 22,0 | 110,0 | 200,0 | 64,0 | 32,0 | 73,0 | 102,0 | 10,0 |
| VLHG 1.0 | 402,0 | 343,0 | 316,0 | 8,0 | 135,0 | 178,0 | 111,0 | 130,0 | 113,0 | 232,0 | 121,0 | 32,0 | 28,0 | 111,0 | 200,0 | 64,0 | 32,0 | 95,0 | 127,0 | 25,0 |
| VLHG 1.5 | 451,0 | 413,0 | 362,0 | 6,0 | 135,0 | 210,0 | 114,0 | 140,0 | 122,0 | 222,0 | 127,0 | 44,0 | 28,0 | 127,0 | 200,0 | 76,0 | 38,0 | 114,0 | 152,0 | 25,0 |
| VLHG 2.0 | 451,0 | 413,0 | 362,0 | 6,0 | 135,0 | 210,0 | 114,0 | 140,0 | 122,0 | 222,0 | 127,0 | 44,0 | 28,0 | 127,0 | 200,0 | 76,0 | 38,0 | 114,0 | 152,0 | 25,0 |
| VLHG 3.0 | 527,0 | 476,0 | 445,0 | 6,0 | 168,0 | 241,0 | 165,0 | 204,0 | 149,0 | 248,0 | 152,0 | 52,0 | 29,0 | 152,0 | 216,0 | 95,0 | 51,0 | 162,0 | 203,0 | 29,0 |
| VLHG 4.0 | 527,0 | 476,0 | 445,0 | 6,0 | 168,0 | 241,0 | 165,0 | 204,0 | 149,0 | 248,0 | 152,0 | 52,0 | 29,0 | 152,0 | 216,0 | 95,0 | 51,0 | 162,0 | 203,0 | 29,0 |
| VLHG 5.0 | 649,0 | 565,0 | 527,0 | 6,0 | 214,0 | 298,0 | 194,0 | 264,0 | 173,0 | 287,0 | 194,0 | 68,0 | 37,0 | 191,0 | 254,0 | 140,0 | 76,0 | 183,0 | 229,0 | 64,0 |
| VLHG 6.0 | 649,0 | 565,0 | 527,0 | 6,0 | 214,0 | 298,0 | 194,0 | 264,0 | 173,0 | 287,0 | 194,0 | 68,0 | 37,0 | 191,0 | 254,0 | 140,0 | 76,0 | 183,0 | 229,0 | 64,0 |
