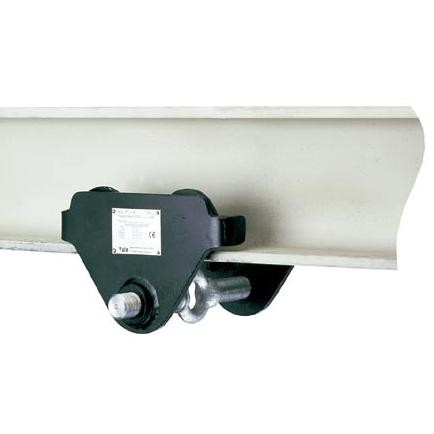

Wózki typu HTP
Udźwigi od 0,5t do 5,0t
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Rozmiar | Zakres szerokości belki | Maksymalna grubość półki | Minimalny promień belki | Wymagana siła | Masa wózka | Masa wózka z urządzeniem blokującym |
| kg | mm | mm | m | kg | kg | kg | |||
| HTP 500 | 01303.054874 | 500,0 | A | 50 - 220 | 25,0 | 0,9 | 3,0 | 8,0 | 14,5 |
| HTP 1000 | 01303.054881 | 1 000,0 | A | 50 - 220 | 25,0 | 0,9 | 6,0 | 9,0 | 17,0 |
| HTP 2000 | 01303.054898 | 2 000,0 | A | 66 - 220 | 25,0 | 1,2 | 7,0 | 16,0 | 24,0 |
| HTP 3000 | 01303.054904 | 3 000,0 | A | 74 - 220 | 25,0 | 1,4 | 7,0 | 32,0 | 41,2 |
| HTP 5000 | 01303.054911 | 5 000,0 | A | 90 - 220 | 25,0 | 1,8 | 9,0 | 48,0 | 58,5 |
| HTP 500 | 01303.054928 | 500,0 | B | 160 - 300 | 40,0 | 0,9 | 3,0 | 10,6 | 17,1 |
| HTP 1000 | 01303.054935 | 1 000,0 | B | 160 - 300 | 40,0 | 0,9 | 6,0 | 12,0 | 20,0 |
| HTP 2000 | 01303.054942 | 2 000,0 | B | 160 - 300 | 40,0 | 1,2 | 7,0 | 19,3 | 27,3 |
| HTP 3000 | 01303.054959 | 3 000,0 | B | 160 - 300 | 40,0 | 1,4 | 7,0 | 35,8 | 45,0 |
| HTP 5000 | 01303.054966 | 5 000,0 | B | 180 - 300 | 40,0 | 1,8 | 9,0 | 52,2 | 62,7 |

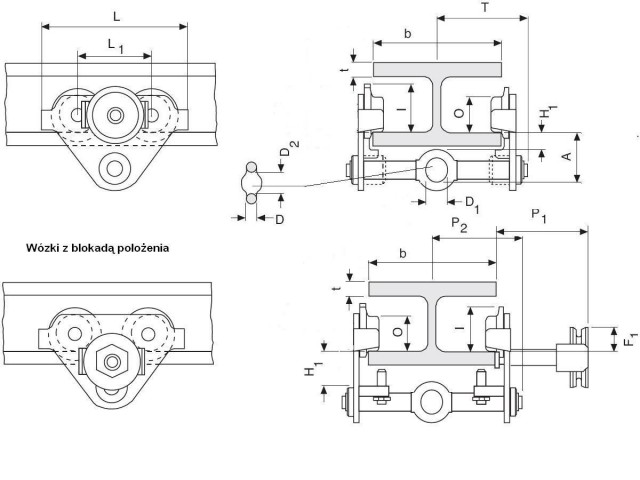

| Wymiary | Rozmiar | A | D | D1 | D2 | F1 | H1 | I | L | L1 | O | P1 | P2 | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| HTP 500 | A | 77,0 | 16,0 | 25,0 | 30,0 | 46,0 | 30,5 | 71,5 | 260,0 | 130,0 | 60,0 | 168,0 | 146,0 | 146,0 |
| HTP 1000 | A | 82,5 | 17,0 | 30,0 | 35,0 | 46,0 | 30,5 | 71,5 | 260,0 | 130,0 | 60,0 | 168,0 | 150,0 | 150,0 |
| HTP 2000 | A | 98,5 | 22,0 | 40,0 | 47,0 | 46,0 | 30,5 | 95,5 | 310,0 | 150,0 | 80,0 | 168,0 | 155,0 | 155,0 |
| HTP 3000 | A | 114,0 | 26,0 | 48,0 | 58,0 | 46,0 | 30,0 | 131,0 | 390,0 | 180,0 | 112,0 | 168,0 | 160,0 | 160,0 |
| HTP 5000 | A | 132,5 | 33,0 | 60,0 | 70,0 | 45,5 | 30,0 | 142,5 | 450,0 | 209,0 | 125,0 | 168,0 | 167,5 | 167,5 |
| HTP 500 | B | 92,0 | 16,0 | 25,0 | 30,0 | 46,0 | 45,5 | 71,5 | 260,0 | 130,0 | 60,0 | 168,0 | 146,0 | 187,0 |
| HTP 1000 | B | 97,5 | 17,0 | 30,0 | 35,0 | 46,0 | 45,5 | 71,5 | 260,0 | 130,0 | 60,0 | 168,0 | 150,0 | 187,0 |
| HTP 2000 | B | 113,5 | 22,0 | 40,0 | 47,0 | 46,0 | 45,5 | 95,5 | 310,0 | 150,0 | 80,0 | 168,0 | 155,0 | 189,5 |
| HTP 3000 | B | 129,0 | 26,0 | 48,0 | 58,0 | 46,0 | 45,0 | 131,0 | 390,0 | 180,0 | 112,0 | 168,0 | 160,0 | 191,5 |
| HTP 5000 | B | 147,5 | 33,0 | 60,0 | 70,0 | 45,5 | 45,0 | 142,5 | 450,0 | 209,0 | 125,0 | 168,0 | 167,5 | 191,5 |

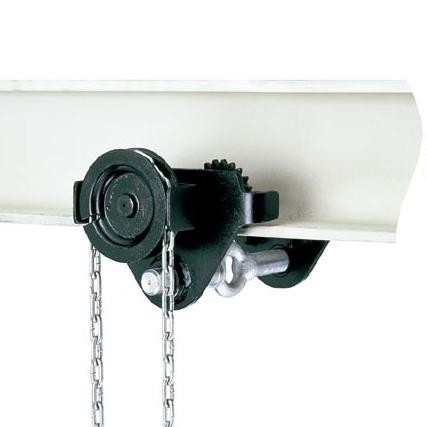

Wózki typu HTG 0,5 do HTG 5,0
Udźwigi od 0,5t do 20,0t
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Rozmiar | Zakres szerokości belki | Maksymalna grubość półki | Minimalny promień belki | Wymagana siła | Masa wózka | Masa wózka z urządzeniem blokującym |
| kg | mm | mm | m | kg | kg | kg | |||
| HTG 500 | 01303.074711 | 500,0 | A | 50 - 220 | 25,0 | 0,9 | 3,0 | 9,7 | 16,2 |
| HTG 1000 | 01303.074728 | 1.000 | A | 50 - 220 | 25,0 | 0,9 | 6,0 | 11,2 | 19,2 |
| HTG 2000 | 01303.074735 | 2.000 | A | 66 - 220 | 25,0 | 1,2 | 7,0 | 18,0 | 26,0 |
| HTG 3000 | 01303.074742 | 3.000 | A | 74 - 220 | 25,0 | 1,4 | 7,0 | 35,4 | 44,6 |
| HTG 5000 | 01303.074759 | 5.000 | A | 90 - 220 | 25,0 | 1,8 | 9,0 | 51,8 | 62,3 |
| HTG 500 | 01303.074766 | 500,0 | B | 160 - 300 | 40,0 | 0,9 | 3,0 | 12,6 | 19,1 |
| HTG 1000 | 01303.074841 | 1.000 | B | 160 - 300 | 40,0 | 0,9 | 6,0 | 14,1 | 22,1 |
| HTG 2000 | 01303.074773 | 2.000 | B | 160 - 300 | 40,0 | 1,2 | 7,0 | 21,3 | 29,3 |
| HTG 3000 | 01303.074780 | 3.000 | B | 160 - 300 | 40,0 | 1,4 | 7,0 | 39,2 | 48,4 |
| HTG 5000 | 01303.074797 | 5.000 | B | 180 - 300 | 40,0 | 1,8 | 9,0 | 56,0 | 66,5 |

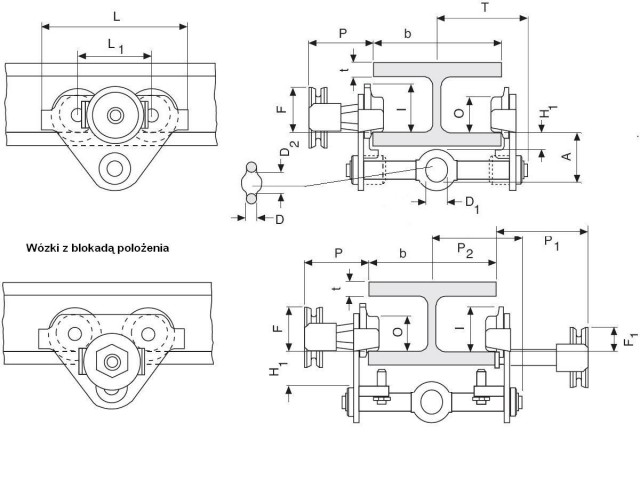

| Wymiary | A | D | D1 | D2 | F | F1 | H1 | I | L | L1 | O | P | P1 | P2 | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| HTG 500-A | 77,0 | 16,0 | 25,0 | 30,0 | 91.5 | 46,0 | 30,5 | 76.5 | 260,0 | 130,0 | 60,0 | 110,0 | 168,0 | 146,0 | 146,0 |
| HTG 1000-A | 82.5 | 17,0 | 30,0 | 35,0 | 91.5 | 46,0 | 30,5 | 76.5 | 260,0 | 130,0 | 60,0 | 110,0 | 168,0 | 150,0 | 150,0 |
| HTG 2000-A | 98.5 | 22,0 | 40,0 | 47,0 | 90.5 | 46,0 | 30,5 | 98,0 | 310,0 | 150,0 | 80,0 | 110,0 | 168,0 | 155,0 | 155,0 |
| HTG 3000-A | 114,0 | 26,0 | 48,0 | 58,0 | 107.5 | 46,0 | 30,0 | 132.5 | 390,0 | 180,0 | 112,0 | 110,0 | 168,0 | 160,0 | 160,0 |
| HTG 5000-A | 132.5 | 33,0 | 60,0 | 70,0 | 149.5 | 45.5 | 30,0 | 148.5 | 450,0 | 209,0 | 125,0 | 110,0 | 168,0 | 167.5 | 167.5 |
| HTG 500-B | 92,0 | 16,0 | 25,0 | 30,0 | 91.5 | 46,0 | 45.5 | 76.5 | 260,0 | 130,0 | 60,0 | 110,0 | 168,0 | 146,0 | 187,0 |
| HTG 1000-B | 97.5 | 17,0 | 30,0 | 35,0 | 91.5 | 46,0 | 45.5 | 76.5 | 260,0 | 130,0 | 60,0 | 110,0 | 168,0 | 150,0 | 187,0 |
| HTG 2000-B | 113.5 | 22,0 | 40,0 | 47,0 | 90.5 | 46,0 | 45.5 | 98,0 | 310,0 | 150,0 | 80,0 | 110,0 | 168,0 | 155,0 | 189.5 |
| HTG 3000-B | 129,0 | 26,0 | 48,0 | 58,0 | 107.5 | 46,0 | 45,0 | 132.5 | 390,0 | 180,0 | 112,0 | 110,0 | 168,0 | 160,0 | 191.5 |
| HTG 5000-B | 147.5 | 33,0 | 60,0 | 70,0 | 149.5 | 45.5 | 45,0 | 148.5 | 450,0 | 209,0 | 125,0 | 110,0 | 168,0 | 167.5 | 191.5 |
Wózki typu HTG 8,0 i HTG 10,0
Udźwigi 8,0t i 10,0t
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Rozmiar | Zakres szerokości belki | Maksymalna grubość półki | Minimalny promień belki | Wymagana siła | Masa wózka |
| kg | mm | mm | m | kg | kg | |||
| HTG 8000B |
01303.074803 | 8.000 | B | 125 - 310 | 40,0 | 1,8 | 14,0 | 104,0 |
| HTG 10000B |
01303.074810 | 10.000 | B | 125 - 310 | 40,0 | 1,8 | 14,0 | 104,0 |

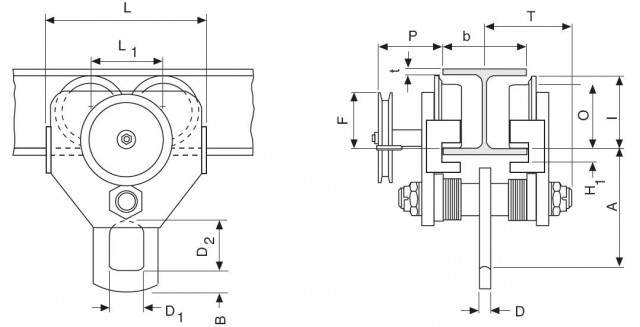

| Wymiary | A | B | D | D1 | D2 | F | H1 | I | L | L1 | O | P | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| HTG 8000-B | 276,0 | 52,0 | 30,0 | 80,0 | 114,0 | 113,0 | 45,0 | 170,0 | 430,0 | 200,0 | 150,0 | 163,0 | 270,0 |
| HTG 10000-B | 276,0 | 52,0 | 30,0 | 80,0 | 114,0 | 113,0 | 45,0 | 170,0 | 430,0 | 200,0 | 150,0 | 163,0 | 270,0 |
Wózki typu HTG 15,0 i HTG 20,0
Udźwigi 15,0t i 20,0t
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Rozmiar | Zakres szerokości belki | Maksymalna grubość półki | Minimalny promień belki | Wymagana siła | Masa wózka |
| kg | mm | mm | m | kg | kg | |||
| HTG 15000 | 01303.074827 | 15.000 | B | 125 - 310 | 40,0 | 5,0 | 29,0 | 230,0 |
| HTG 20000 | 01303.074834 | 20.000 | B | 125 - 310 | 40,0 | 5,0 | 29,0 | 230,0 |

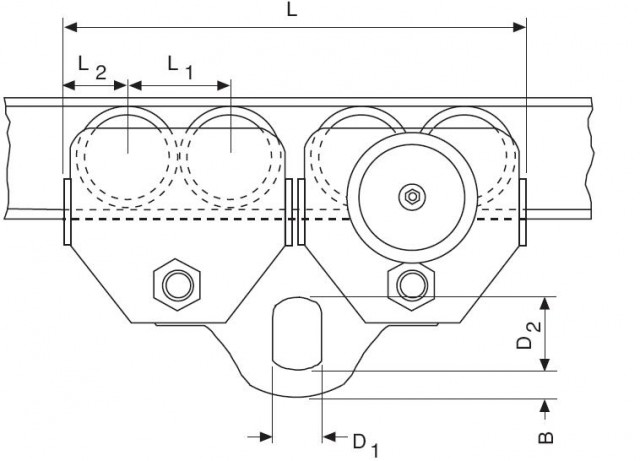

| Wymiary | A | B | D | D1 | D2 | F | H1 | I | L | L1 | L2 | O | P | T |
| Typ | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| HTG 15000-B | 270,0 | 70,0 | 35,0 | 110,0 | 155,0 | 113,0 | 45,0 | 170,0 | 870,0 | 200,0 | 115,0 | 150,0 | 163,0 | 270,0 |
| HTG 20000-B | 270,0 | 70,0 | 35,0 | 110,0 | 155,0 | 113,0 | 45,0 | 170,0 | 870,0 | 200,0 | 115,0 | 150,0 | 163,0 | 270,0 |
