Wciągniki linowe w wykonaniu przejezdnym w normalnej zabudowie są najczęściej stosowanymi wciągnikami linowymi w pomostowych i bramowych suwnicach jednodźwigarowych. Mogą być także wykorzystywane jako samodzielne urządzenia podnoszące (solo).

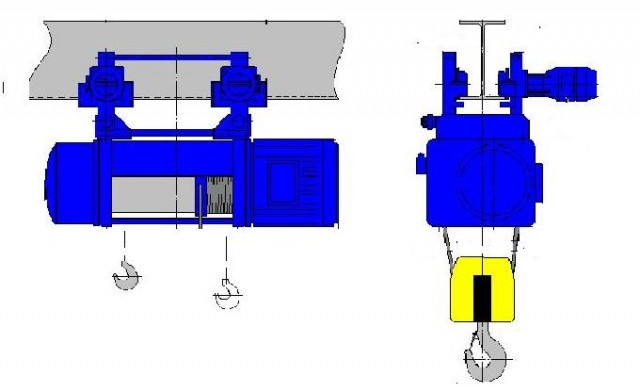

Wciągniki linowe typu MT - układ lin 2/1
Udźwigi od 800,0kg do 5000,0kg
Dwie prędkości podnoszenia i jazdy
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54, wyłacznik krańcowy, zabezpieczenie termiczne
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Prędkość jazdy | Wysokość podnoszenia |
| kg | m/min | m/min | m | |||
| MT304H10,0V1-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT304H20,0V2-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT304H10,0V1-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT304H10,0V2-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT304H14,0V1-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT304H14,0V2-2/1MEN20/6,5 | 800,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT305H10,0V1-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT305H10,0V2-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT305H14,0V1-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT305H14,0V2-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT305H20,0V1-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT305H20,0V2-2/1MEN20/6,5 | 1000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT306H10,0V1-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT306H10,0V2-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT306H14,0V1-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT306H14,0V2-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT306H20,0V1-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT306H20,0V2-2/1MEN20/6,5 | 1250,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT308H10,0V2-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT308H10,0V2-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT308H14,0V1-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT308H14,0V2-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT308H20,0V1-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT308H20,0V2-2/1MEN20/6,5 | 1600,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT310H10,0V1-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT310H10,0V2-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT310H14,0V1-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT310H14,0V2-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT310H20,0V1-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT310H20,0V2-2/1MEN20/6,5 | 2000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT312H10,0V1-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT312H10,0V2-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT312H14,0V1-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT312H14,0V2-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT312H20,0V1-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT312H20,0V2-2/1MEN20/6,5 | 2500,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT313H10,0V1-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT313H10,0V2-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT313H14,0V1-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT313H14,0V2-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT313H20,0V1-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT313H20,0V2-2/1MEN20/6,5 | 2500,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT316H10,0V1-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT316H10,0V2-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT316H14,0V1-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT316H14,0V2-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT316H20,0V1-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT316H20,0V2-2/1MEN20/6,5 | 3200,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT520H10,0V1-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT520H10,0V2-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 10,0 |
| MT520H14,0V1-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT520H14,0V2-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| MT520H20,0V1-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT520H20,0V2-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 20,0 |
| MT520H26,0V1-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 26,0 |
| MT520H26,0V2-2/1MEN20/6,5 | 4000,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 26,0 |
| MT525H10,0V1-2/1MEN20/6,5 | 5000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 10,0 |
| MT525H14,0V1-2/1MEN20/6,5 | 5000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| MT525H20,0V1-2/1MEN20/6,5 | 5000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 20,0 |
| MT525H26,0V1-2/1MEN20/6,5 | 5000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 26,0 |

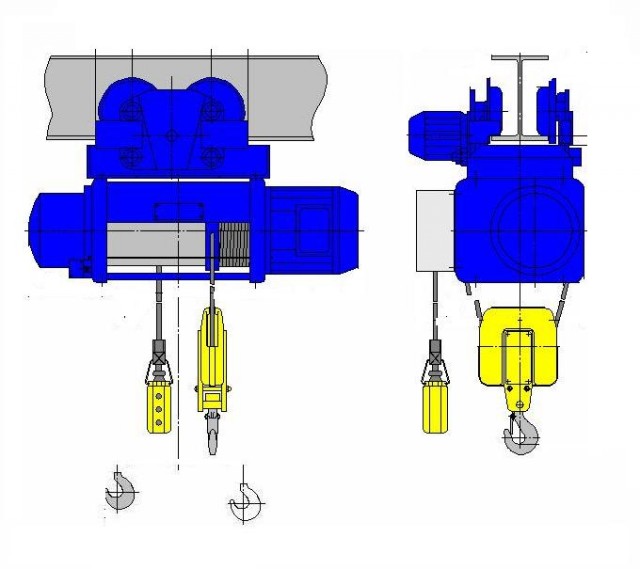

Wciągniki linowe typu MT - układ lin 4/1
Udźwigi od 1600,0kg do 10000,0kg
Dwie prędkości podnoszenia i jazdy
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54, wyłacznik krańcowy, zabezpieczenie termiczne
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Prędkość jazdy | Wysokość podnoszenia |
| kg | m/min | m/min | m | |||
| MT304H 6,0V1-4/1MEN20/6,5 | 1600,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,0 |
| MT304H 6,0V2-4/1MEN20/6,5 | 1600,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,0 |
| MT305H 6,0V1-4/1MEN20/6,5 | 2000,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,0 |
| MT305H 6,0V2-4/1MEN20/6,5 | 2000,0 | 2m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,0 |
| MT306H 6,5V1-4/1MEN20/6,5 | 2500,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT306H 6,5V2-4/1MEN20/6,5 | 2500,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT308H 6,5V1-4/1MEN20/6,5 | 3200,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT308H 6,5V2-4/1MEN20/6,5 | 3200,0 | 2m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT310H 6,5V1-4/1MEN20/6,5 | 4000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT310H 6,5V2-4/1MEN20/6,5 | 4000,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT312H 6,5V1-4/1MEN20/6,5 | 5000,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT312H 6,5V2-4/1MEN20/6,5 | 5000,0 | 2m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT313H 6,5V1-4/1MEN20/6,5 | 5000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT313H 6,5V2-4/1MEN20/6,5 | 5000,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT316H 6,5V1-4/1MEN20/6,5 | 6300,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 6,5 |
| MT316H 6,5V2-4/1MEN20/6,5 | 6300,0 | 2m | 4/1 | 6,0/2,0 | 20,0/6,5 | 6,5 |
| MT520H 7,0V1-4/1MEN20/6,5 | 8000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 7,0 |
| MT520H 7,0V2-4/1MEN20/6,5 | 8000,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 7,0 |
| MT520H 8,0V1-4/1MEN20/6,5 | 8000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 8,0 |
| MT520H 8,0V2-4/1MEN20/6,5 | 8000,0 | 3m | 4/1 | 6,0/2,0 | 20,0/6,5 | 8,0 |
| MT525H 7,0V1-4/1MEN20/6,5 | 10000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 7,0 |
| MT525H 8,0V1-4/1MEN20/6,5 | 10000,0 | 3m | 4/1 | 4,0/1,25 | 20,0/6,5 | 8,0 |

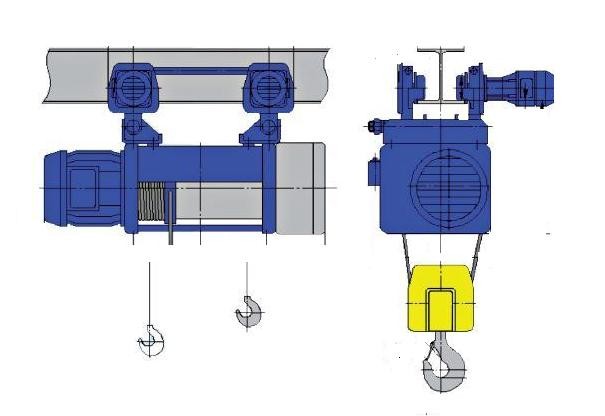

Wciągniki linowe typu M - układ lin 2/1
Udźwigi od 6300,0kg do 10000,0kg
Dwie prędkości podnoszenia i jazdy
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54, wyłacznik krańcowy, zabezpieczenie termiczne
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Prędkość jazdy | Wysokość podnoszenia |
| kg | m/min | m/min | m | |||
| M732H14,0V1-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| M732H14,0V2-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| M732H19,0V1-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 19,0 |
| M732H19,0V2-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 19,0 |
| M732H26,0V1-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 8,0/2,6 | 20,0/6,5 | 26,0 |
| M732H26,0V2-2/1MEN20/6,5 | 6300,0 | 3m | 2/1 | 12,0/4,0 | 20,0/6,5 | 26,0 |
| M740H14,0V1-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| M740H14,0V2-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| M740H19,0V1-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 19,0 |
| M740H19,0V2-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 19,0 |
| M740H26,0V1-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 8,0/2,6 | 20,0/6,5 | 26,0 |
| M740H26,0V2-2/1MEN20/6,5 | 8000,0 | 2m | 2/1 | 12,0/4,0 | 20,0/6,5 | 26,0 |
| M750H14,0V1-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 20,0/6,5 | 14,0 |
| M750H14,0V2-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 12,0/4,0 | 20,0/6,5 | 14,0 |
| M750H19,0V1-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 20,0/6,5 | 19,0 |
| M750H19,0V2-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 12,0/4,0 | 20,0/6,5 | 19,0 |
| M950H20,0V1-2/1MEN20/6,5 | 10000,0 | 2m | 2/1 | 5,0/1,2 | 20,0/6,5 | 20,0 |
| M950H20,0V2-2/1MEN20/6,5 | 10000,0 | 2m | 2/1 | 10,0/1,5 | 20,0/6,5 | 20,0 |
| M750H26,0V1-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 20,0/6,5 | 26,0 |
| M750H26,0V2-2/1MEN20/6,5 | 10000,0 | 1Am | 2/1 | 12,0/4,0 | 20,0/6,5 | 26,0 |
| M950H32,0V1-2/1MEN20/6,5 | 10000,0 | 2m | 2/1 | 5,0/1,2 | 20,0/6,5 | 32,0 |
| M950H32,0V2-2/1MEN20/6,5 | 10000,0 | 2m | 2/1 | 10,0/1,5 | 20,0/6,5 | 32,0 |

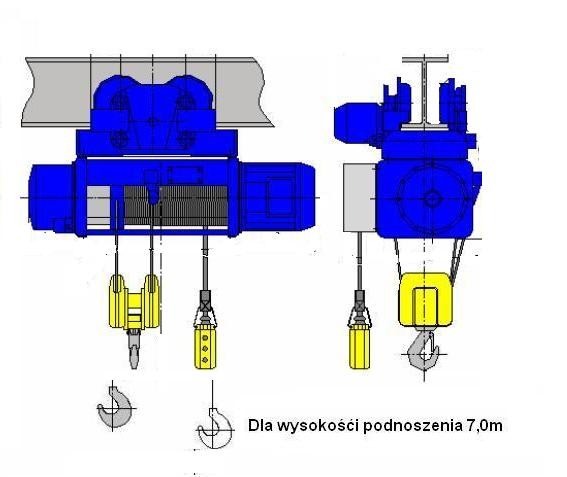

Przejezdne wciągniki linowe typu M - układ lin 4/1
Udźwig 16000,0kg
Dwie prędkości podnoszenia i jazdy
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54, wyłacznik krańcowy, zabezpieczenie termiczne
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Prędkość jazdy | Wysokość podnoszenia |
| kg | m/min | m/min | m | |||
| M740H 7,0V1-4/1MEN20/6,5 | 16000,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 7,0 |
| M740H 7,0V2-4/1MEN20/6,5 | 16000,0 | 2m | 4/1 | 6,0/0,9 | 20,0/6,5 | 7,0 |
| M740H 9,0V1-4/1MEN20/6,5 | 16000,0 | 2m | 4/1 | 4,0/1,25 | 20,0/6,5 | 9,0 |
| M740H 9,0V2-4/1MEN20/6,5 | 16000,0 | 2m | 4/1 | 6,0/0,9 | 20,0/6,5 | 9,0 |
| M940H10,0V1-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 2,5/0,6 | 20,0/6,5 | 10,0 |
| M940H10,0V2-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 5,0/0,75 | 20,0/6,5 | 10,0 |
| M940H16,0V1-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 2,5/0,6 | 20,0/6,5 | 16,0 |
| M940H16,0V2-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 5,0/0,75 | 20,0/6,5 | 16,0 |
| M940H24,0V1-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 2,5/0,6 | 20,0/6,5 | 24,0 |
| M940H24,0V2-4/1MEN20/6,5 | 16000,0 | 3m | 4/1 | 5,0/0,75 | 20,0/6,5 | 24,0 |
