Wciągniki linowe w wykonaniu stacjonarnym stosowane są jako wyposażenie wciągarek stosowanych w suwnicach dwudźwigarowych oraz w dźwignicach specjalnego zastosowania.

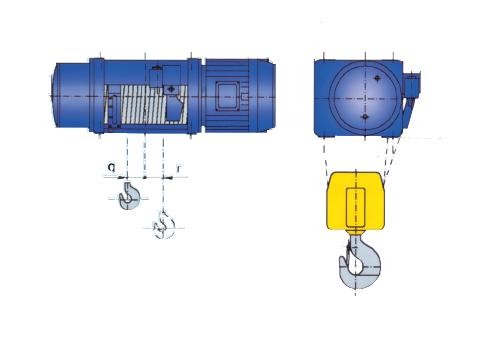

Wciągniki stacjonarne MT - układ l2/1
Udźwigi od 800,0kg do 5000,0kg
Dwie prędkości podnoszenia
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54
Wyłacznik krańcowy, zabezpieczenie termiczne, ogranicznik udźwigu
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Wysokość podnoszenia |
| kg | m/min | m | |||
| MT304H10V1-2/1M | 800,0 | 3m | 2/1 | 8,0/2,6 | 10,0 |
| MT304H14V1-2/1M | 800,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| MT304H20V1-2/1M | 800,0 | 3m | 2/1 | 8,0/2,6 | 20,0 |
| MT304H10V2-2/1M | 800,0 | 3m | 2/1 | 12,0/4,0 | 10,0 |
| MT304H14V2-2/1M | 800,0 | 3m | 2/1 | 12,0/4,0 | 14,0 |
| MT304H20V2-2/1M | 800,0 | 3m | 2/1 | 12,0/4,0 | 20,0 |
| MT305H10V1-2/1M | 1000,0 | 2m | 2/1 | 8,0/2,6 | 10,0 |
| MT305H10V2-2/1M | 1000,0 | 2m | 2/1 | 12,0/4,0 | 10,0 |
| MT305H14V1-2/1M | 1000,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| MT305H14V2-2/1M | 1000,0 | 2m | 2/1 | 12,0/4,0 | 14,0 |
| MT305H20V1-2/1M | 1000,0 | 2m | 2/1 | 8,0/2,6 | 20,0 |
| MT305H20V2-2/1M | 1000,0 | 2m | 2/1 | 12,0/4,0 | 20,0 |
| MT306H10V1-2/1M | 1250,0 | 3m | 2/1 | 8,0/2,6 | 10,0 |
| MT306H10V2-2/1M | 1250,0 | 3m | 2/1 | 12,0/4,0 | 10,0 |
| MT306H14V1-2/1M | 1250,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| MT306H14V2-2/1M | 1250,0 | 3m | 2/1 | 12,0/4,0 | 14,0 |
| MT306H20V1-2/1M | 1250,0 | 3m | 2/1 | 8,0/2,6 | 20,0 |
| MT306H20V2-2/1M | 1250,0 | 3m | 2/1 | 12,0/4,0 | 20,0 |
| MT310H10V1-2/1M | 1600,0 | 2m | 2/1 | 8,0/2,6 | 10,0 |
| MT310H10V2-2/1M | 1600,0 | 2m | 2/1 | 12,0/4,0 | 10,0 |
| MT310H14V1-2/1M | 1600,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| MT310H14V2-2/1M | 1600,0 | 2m | 2/1 | 12,0/4,0 | 14,0 |
| MT310H20V1-2/1M | 1600,0 | 2m | 2/1 | 8,0/2,6 | 20,0 |
| MT310H20V2-2/1M | 1600,0 | 2m | 2/1 | 12,0/4,0 | 20,0 |
| MT310H10V1-2/1M | 2000,0 | 3m | 2/1 | 8,0/2,6 | 10,0 |
| MT310H10V2-2/1M | 2000,0 | 3m | 2/1 | 12,0/4,0 | 10,0 |
| MT310H14V1-2/1M | 2000,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| MT310H14V2-2/1M | 2000,0 | 3m | 2/1 | 12,0/4,0 | 14,0 |
| MT310H20V1-2/1M | 2000,0 | 3m | 2/1 | 8,0/2,6 | 20,0 |
| MT310H20V2-2/1M | 2000,0 | 3m | 2/1 | 12,0/4,0 | 20,0 |
| MT312H10V1-2/1M | 2500,0 | 2m | 2/1 | 8,0/2,6 | 10,0 |
| MT312H10V2-2/1M | 2500,0 | 2m | 2/1 | 12,0/4,0 | 10,0 |
| MT312H14V1-2/1M | 2500,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| MT312H14V2-2/1M | 2500,0 | 2m | 2/1 | 12,0/4,0 | 14,0 |
| MT312H20V1-2/1M | 2500,0 | 2m | 2/1 | 8,0/2,6 | 20,0 |
| MT312H20V2-2/1M | 2500,0 | 2m | 2/1 | 12,0/4,0 | 20,0 |
| MT313H10V1-2/1M | 2500,0 | 3m | 2/1 | 8,0/2,6 | 10,0 |
| MT313H10V2-2/1M | 2500,0 | 3m | 2/1 | 12,0/4,0 | 10,0 |
| MT313H14V1-2/1M | 2500,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| MT313H14V2-2/1M | 2500,0 | 3m | 2/1 | 12,0/4,0 | 14,0 |
| MT313H20V1-2/1M | 2500,0 | 3m | 2/1 | 8,0/2,6 | 20,0 |
| MT313H20V2-2/1M | 2500,0 | 3m | 2/1 | 12,0/4,0 | 20,0 |
| MT316H10V1-2/1M | 3200,0 | 2m | 2/1 | 8,0/2,6 | 10,0 |
| MT316H10V2-2/1M | 3200,0 | 2m | 2/1 | 12,0/4,0 | 10,0 |
| MT316H14V1-2/1M | 3200,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| MT316H14V2-2/1M | 3200,0 | 2m | 2/1 | 12,0/4,0 | 14,0 |
| MT316H20V1-2/1M | 3200,0 | 2m | 2/1 | 8,0/2,6 | 20,0 |
| MT316H20V2-2/1M | 3200,0 | 2m | 2/1 | 12,0/4,0 | 20,0 |
| MT520H10V1-2/1M | 4000,0 | 3m | 2/1 | 8,0/2,6 | 10,0 |
| MT520H10V2-2/1M | 4000,0 | 3m | 2/1 | 12,0/4,0 | 10,0 |
| MT520H14V1-2/1M | 4000,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| MT520H14V2-2/1M | 4000,0 | 3m | 2/1 | 12,0/4,0 | 14,0 |
| MT520H20V1-2/1M | 4000,0 | 3m | 2/1 | 8,0/2,6 | 20,0 |
| MT520H20V2-2/1M | 4000,0 | 3m | 2/1 | 12,0/4,0 | 20,0 |
| MT520H26V1-2/1M | 4000,0 | 3m | 2/1 | 8,0/2,6 | 26,0 |
| MT520H26V2-2/1M | 4000,0 | 3m | 2/1 | 12,0/4,0 | 26,0 |
| MT525H10V1-2/1M | 5000,0 | 2m | 2/1 | 8,0/2,6 | 10,0 |
| MT525H14V1-2/1M | 5000,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| MT525H20V1-2/1M | 5000,0 | 2m | 2/1 | 8,0/2,6 | 20,0 |
| MT525H26V1-2/1M | 5000,0 | 2m | 2/1 | 8,0/2,6 | 26,0 |

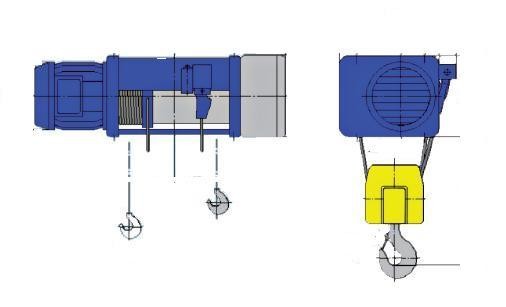

Stacjonarne wciągniki linowe typu MT - układ lin 4/1
Udźwigi od 1600,0kg do 10000,0kg
Dwie prędkości podnoszenia
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54
Wyłacznik krańcowy, zabezpieczenie termiczne, ogranicznik udźwigu
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Wysokość podnoszenia |
| kg | m/min | m | |||
| MT304H07V1-4/1M | 1600,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT304H07V2-4/1M | 1600,0 | 3m | 4/1 | 6,0/2,0 | 7,0 |
| MT304H10V1-4/1M | 1600,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT304H10V2-4/1M | 1600,0 | 3m | 4/1 | 6,0/2,0 | 10,0 |
| MT304H13V1-4/1M | 1600,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |
| MT304H13V2-4/1M | 1600,0 | 3m | 4/1 | 6,0/2,0 | 13,0 |
| MT305H07V1-4/1M | 2000,0 | 2m | 4/1 | 4,0/1,3 | 7,0 |
| MT305H07V2-4/1M | 2000,0 | 2m | 4/1 | 6,0/2,0 | 7,0 |
| MT305H10V1-4/1M | 2000,0 | 2m | 4/1 | 4,0/1,3 | 10,0 |
| MT305H10V2-4/1M | 2000,0 | 2m | 4/1 | 6,0/2,0 | 10,0 |
| MT305H13V1-4/1M | 2000,0 | 2m | 4/1 | 4,0/1,3 | 13,0 |
| MT305H13V2-4/1M | 2000,0 | 2m | 4/1 | 6,0/2,0 | 13,0 |
| MT306H07V1-4/1M | 2500,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT306H07V2-4/1M | 2500,0 | 3m | 4/1 | 6,0/2,0 | 7,0 |
| MT306H10V1-4/1M | 2500,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT306H10V2-4/1M | 2500,0 | 3m | 4/1 | 6,0/2,0 | 10,0 |
| MT306H13V1-4/1M | 2500,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |
| MT306H13V2-4/1M | 2500,0 | 3m | 4/1 | 6,0/2,0 | 13,0 |
| MT308H07V1-4/1M | 3200,0 | 2m | 4/1 | 4,0/1,3 | 7,0 |
| MT308H07V2-4/1M | 3200,0 | 2m | 4/1 | 6,0/2,0 | 7,0 |
| MT308H10V1-4/1M | 3200,0 | 2m | 4/1 | 4,0/1,3 | 10,0 |
| MT308H10V2-4/1M | 3200,0 | 2m | 4/1 | 6,0/2,0 | 10,0 |
| MT308H13V1-4/1M | 3200,0 | 2m | 4/1 | 4,0/1,3 | 13,0 |
| MT308H13V2-4/1M | 3200,0 | 2m | 4/1 | 6,0/2,0 | 13,0 |
| MT310H07V1-4/1M | 4000,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT310H07V2-4/1M | 4000,0 | 3m | 4/1 | 6,0/2,0 | 7,0 |
| MT310H10V1-4/1M | 4000,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT310H10V2-4/1M | 4000,0 | 3m | 4/1 | 6,0/2,0 | 10,0 |
| MT310H13V1-4/1M | 4000,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |
| MT310H13V2-4/1M | 4000,0 | 3m | 4/1 | 6,0/2,0 | 13,0 |
| MT312H07V1-4/1M | 5000,0 | 2m | 4/1 | 4,0/1,3 | 7,0 |
| MT312H07V2-4/1M | 5000,0 | 2m | 4/1 | 6,0/2,0 | 7,0 |
| MT312H10V1-4/1M | 5000,0 | 2m | 4/1 | 4,0/1,3 | 10,0 |
| MT312H10V2-4/1M | 5000,0 | 2m | 4/1 | 6,0/2,0 | 10,0 |
| MT312H13V1-4/1M | 5000,0 | 2m | 4/1 | 4,0/1,3 | 13,0 |
| MT312H13V2-4/1M | 5000,0 | 2m | 4/1 | 6,0/2,0 | 13,0 |
| MT313H07V1-4/1M | 5000,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT313H07V2-4/1M | 5000,0 | 3m | 4/1 | 6,0/2,0 | 7,0 |
| MT313H10V1-4/1M | 5000,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT313H10V2-4/1M | 5000,0 | 3m | 4/1 | 6,0/2,0 | 10,0 |
| MT313H13V1-4/1M | 5000,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |
| MT313H13V2-4/1M | 5000,0 | 3m | 4/1 | 6,0/2,0 | 13,0 |
| MT316H07V1-4/1M | 6300,0 | 2m | 4/1 | 4,0/1,3 | 7,0 |
| MT316H07V2-4/1M | 6300,0 | 2m | 4/1 | 6,0/2,0 | 7,0 |
| MT316H10V1-4/1M | 6300,0 | 2m | 4/1 | 4,0/1,3 | 10,0 |
| MT316H10V2-4/1M | 6300,0 | 2m | 4/1 | 6,0/2,0 | 10,0 |
| MT316H13V1-4/1M | 6300,0 | 2m | 4/1 | 4,0/1,3 | 13,0 |
| MT316H13V2-4/1M | 6300,0 | 2m | 4/1 | 6,0/2,0 | 13,0 |
| MT520H07V1-4/1M | 8000,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT520H07V2-4/1M | 8000,0 | 3m | 4/1 | 6,0/2,0 | 7,0 |
| MT520H10V1-4/1M | 8000,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT520H10V2-4/1M | 8000,0 | 3m | 4/1 | 6,0/2,0 | 10,0 |
| MT520H13V1-4/1M | 8000,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |
| MT520H13V2-4/1M | 8000,0 | 3m | 4/1 | 6,0/2,0 | 13,0 |
| MT525H07V1-4/1M | 10000,0 | 3m | 4/1 | 4,0/1,3 | 7,0 |
| MT525H10V1-4/1M | 10000,0 | 3m | 4/1 | 4,0/1,3 | 10,0 |
| MT525H13V1-4/1M | 10000,0 | 3m | 4/1 | 4,0/1,3 | 13,0 |

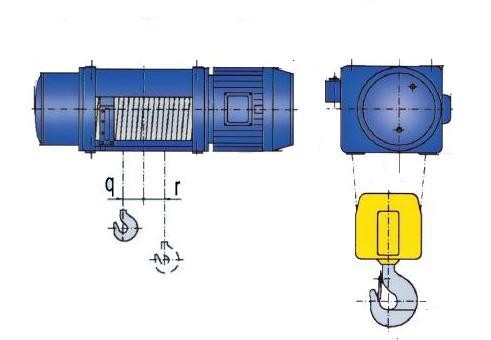

Stacjonarne wciągniki linowe typu M - układ lin 2/1
Udźwigi od 6300,0kg do 10000,0kg
Dwie prędkości podnoszenia
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54
Wyłacznik krańcowy, zabezpieczenie termiczne, ogranicznik udźwigu
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Wysokość podnoszenia |
| kg | m/min | m | |||
| M732H14V1-2/1M | 6300,0 | 3m | 2/1 | 8,0/2,6 | 14,0 |
| M732H14V2-2/1M | 6300,0 | 3m | 2/1 | 12,0/1,8 | 14,0 |
| M732H19V1-2/1M | 6300,0 | 3m | 2/1 | 8,0/2,6 | 19,0 |
| M732H19V2-2/1M | 6300,0 | 3m | 2/1 | 12,0/1,8 | 19,0 |
| M732H26V1-2/1M | 6300,0 | 3m | 2/1 | 8,0/2,6 | 26,0 |
| M732H25V2-2/1M | 6300,0 | 3m | 2/1 | 12,0/1,8 | 26,0 |
| M740H14V1-2/1M | 8000,0 | 2m | 2/1 | 8,0/2,6 | 14,0 |
| M740H14V2-2/1M | 8000,0 | 2m | 2/1 | 12,0/1,8 | 14,0 |
| M740H19V1-2/1M | 8000,0 | 2m | 2/1 | 8,0/2,6 | 19,0 |
| M740H25V2-2/1M | 8000,0 | 2m | 2/1 | 12,0/1,8 | 19,0 |
| M740H26V1-2/1M | 8000,0 | 2m | 2/1 | 8,0/2,6 | 26,0 |
| M740H19V2-2/1M | 8000,0 | 2m | 2/1 | 12,0/1,8 | 26,0 |
| M750H14V1-2/1M | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 14,0 |
| M750H14V2-2/1M | 10000,0 | 1Am | 2/1 | 10,0/2,5 | 14,0 |
| M750H19V1-2/1M | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 19,0 |
| M750H19V2-2/1M | 10000,0 | 1Am | 2/1 | 10,0/2,5 | 19,0 |
| M950H20V1-2/1M | 10000,0 | 2m | 2/1 | 5,0/1,2 | 20,0 |
| M950H20V2-2/1M | 10000,0 | 2m | 2/1 | 10,0/1,5 | 20,0 |
| M750H26V1-2/1M | 10000,0 | 1Am | 2/1 | 8,0/2,6 | 26,0 |
| M750H25V2-2/1M | 10000,0 | 1Am | 2/1 | 10,0/2,5 | 26,0 |
| M950H32V1-2/1M | 10000,0 | 2m | 2/1 | 5,0/1,2 | 32,0 |
| M950H32V2-2/1M | 10000,0 | 2m | 2/1 | 10,0/1,5 | 32,0 |

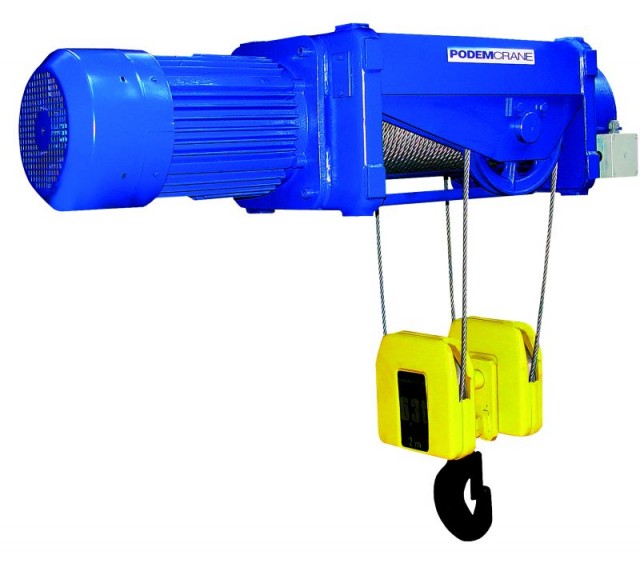

Stacjonarne wciągniki linowe typu M - układ lin 4/1
Udźwig 16000,0kg
Dwie prędkości podnoszenia
Napięcie zasilania - 400,0V-3 fazy (opcja - 500V)
Napięcie sterowania - 24,0V (sterowanie z kasety sterowniczej, opcja - sterowanie radiowe)
Zabezpieczenie silnika - IP54
Wyłacznik krańcowy, zabezpieczenie termiczne, ogranicznik udźwigu
Charakterystyka techniczna
| Typ | Udźwig | GNP | Układ lin | Prędkość podnoszenia | Wysokość podnoszenia |
| kg | m/min | m | |||
| M740H07V1-4/1M | 16000,0 | 2m | 4/1 | 4,0/1,3 | 7,0 |
| M740H07V2-4/1M | 16000,0 | 2m | 4/1 | 6,0/0,9 | 7,0 |
| M740H09V1-4/1M | 16000,0 | 2m | 4/1 | 4,0/1,3 | 9,0 |
| M740H09V2-4/1M | 16000,0 | 2m | 4/1 | 6,0/0,9 | 9,0 |
| M740H13V1-4/1M | 16000,0 | 2m | 4/1 | 4,0/1,3 | 13,0 |
| M740H13V2-4/1M | 16000,0 | 2m | 4/1 | 6,0/0,9 | 13,0 |
| M740H16V1-4/1M | 16000,0 | 2m | 4/1 | 4,0/1,3 | 16,0 |
| M740H16V2-4/1M | 16000,0 | 2m | 4/1 | 6,0/0,9 | 16,0 |
| M940H10V1-4/1M | 16000,0 | 3m | 4/1 | 2,5/0,6 | 10,0 |
| M940H10V2-4/1M | 16000,0 | 3m | 4/1 | 5,0/0,75 | 10,0 |
| M940H16V1-4/1M | 16000,0 | 3m | 4/1 | 2,5/0,6 | 16,0 |
| M940H16V2-4/1M | 16000,0 | 3m | 4/1 | 5,0/0,75 | 16,0 |
| M940H24V1-4/1M | 16000,0 | 3m | 4/1 | 2,5/0,6 | 24,0 |
| M940H24V2-4/1M | 16000,0 | 3m | 4/1 | 5,0/0,75 | 24,0 |
