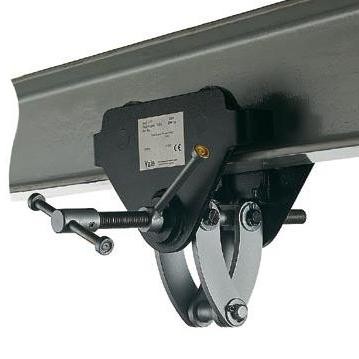

Wózki klamrowe CTP
Udźwigi od 1,0t do 3,0t
wwww
Charakterystyka techniczna
| Typ | Nr katalogowy | Udźwig | Zakres szerokość pólki | Promień toru | Masa |
| kg | mm | m | kg | ||
| CTP 1-A | 01303.063012 | 1 000,0 | 60 - 150 | 0,6 | 2,5 |
| CTP 2-A | 01303.055437 | 2 000,0 | 75 - 200 | 0,9 | 9,9 |
| CTP 2-B | 01303.055444 | 2 000,0 | 200 - 300 | 0,9 | 10,3 |
| CTP 3-A | 01303.055451 | 3 000,0 | 75 - 200 | 1,15 | 17,5 |
| CTP 3-B | 01303.055468 | 3 000,0 | 200 - 320 | 1,15 | 19,5 |

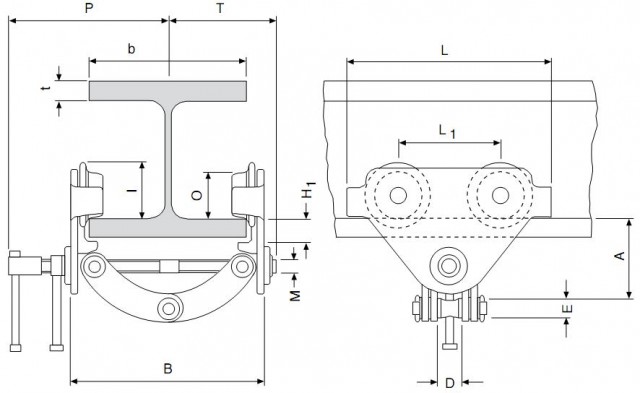

| Wymiary | A | D | E | H | I | L | L | M | O | P | T | t |
| Typ |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| CTP 1-A | 82 - 109 | 26,0 | 22,0 | 20,0 | 53,0 | 160,0 | 75,0 | M12 | 46,0 | 153,0 | 105,0 | 15,0 |
| CTP 2-A | 106 - 155 | 42,0 | 20,0 | 30,0 | 71,5 | 260,0 | 130,0 | M18 | 60,0 | 205,0 | 139,0 | 25,0 |
| CTP 2-B | 136 - 191 | 42,0 | 20,0 | 30,0 | 71,5 | 260,0 | 130,0 | M18 | 60,0 | 255,0 | 189,0 | 25,0 |
| CTP 3-A | 128 - 171 | 50,0 | 22,0 | 30,5 | 95,5 | 310,0 | 150,0 | M24 | 80,0 | 220,0 | 155,0 | 25,0 |
| CTP 3-B | 150 - 212 | 50,0 | 22,0 | 30,5 | 95,5 | 310,0 | 150,0 | M24 | 80,0 | 280,0 | 215,0 | 25,0 |
